AP41 - AmpPac 41

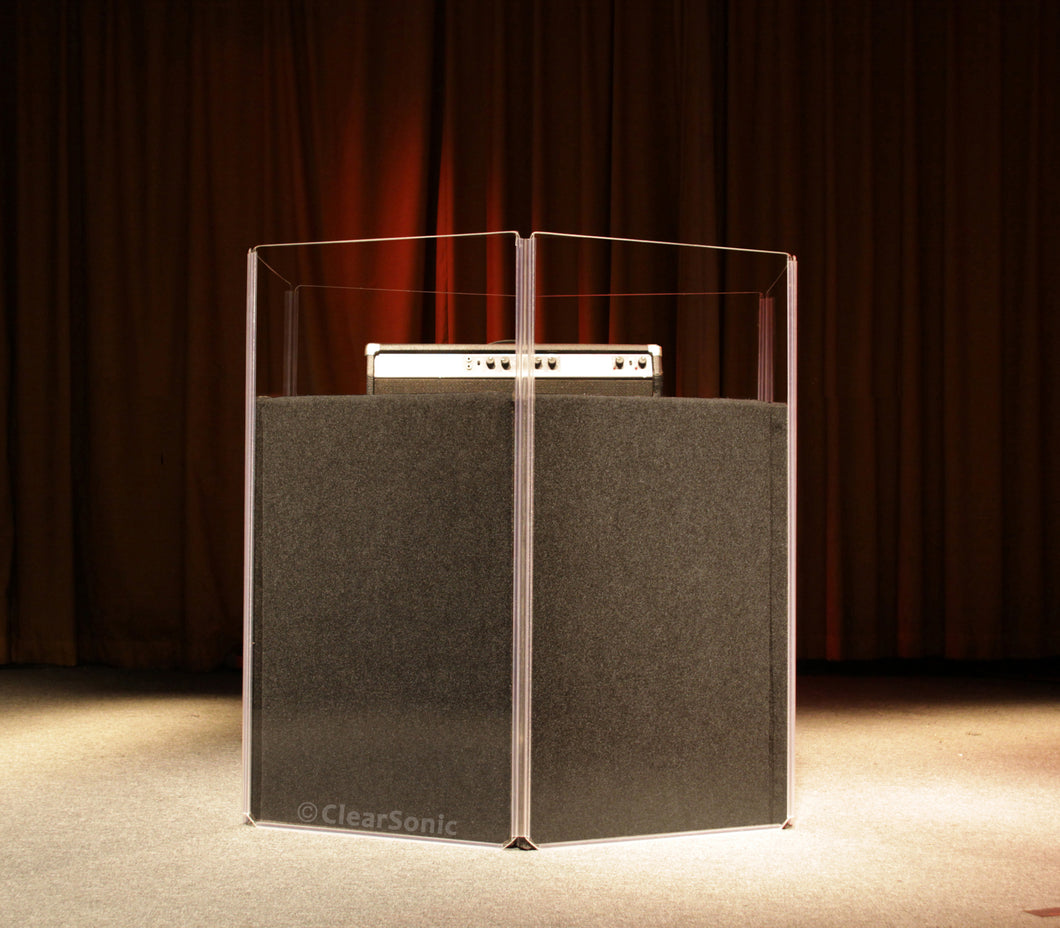

45-inch wide x 30-inch wide x 48-inch high AmpPac 41

Controlling amplified speaker volume on stage or in the studio can be a challenge.  AmpPacs use a combination of ClearSonic Acrylic Panel amp shields and Sorber baffles to both deflect and absorb excess speaker volume. The result is lower stage volume and better separation between instruments.

AmpPac 41 is designed for use with 4x10 and 4x12 combos and cabinets and features a six-panel A2448x6 that completely surrounds the cabinet for better isolation. (6) S2233 Sorber baffles are attached to the inside of the acrylic to absorb some of the sound before it can bounce back into the room.

Parts List:

(1) A2448x6
(6) S2233

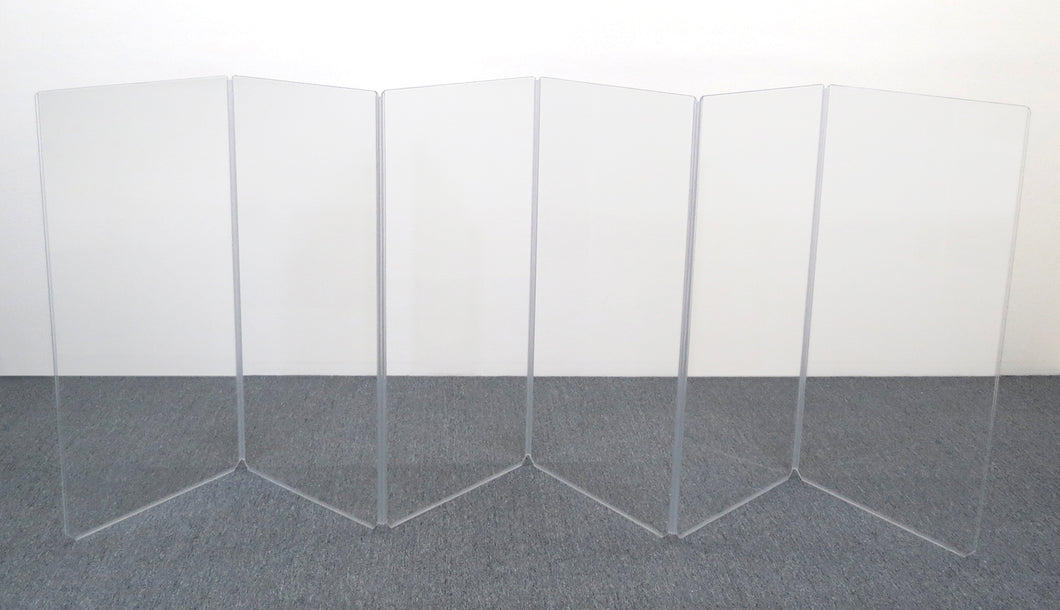

Acrylic Features

• Routered edges – provide clean and smooth edge that won’t cut your hands.

• ¼” thick acrylic material – provides durability for transporting panels. Creates acoustic separation between instruments on stage or in the studio, cuts down on mic bleeding, and allows everyone to hear themselves or the mix better.  Adds stability that allows for modular set up by supporting acrylic height extenders and Sorber baffles on top, such as a LidPac, and attachment of Sorber panels, such as the S2233, directly to the acrylic panels with adhesive-backed Velcro.

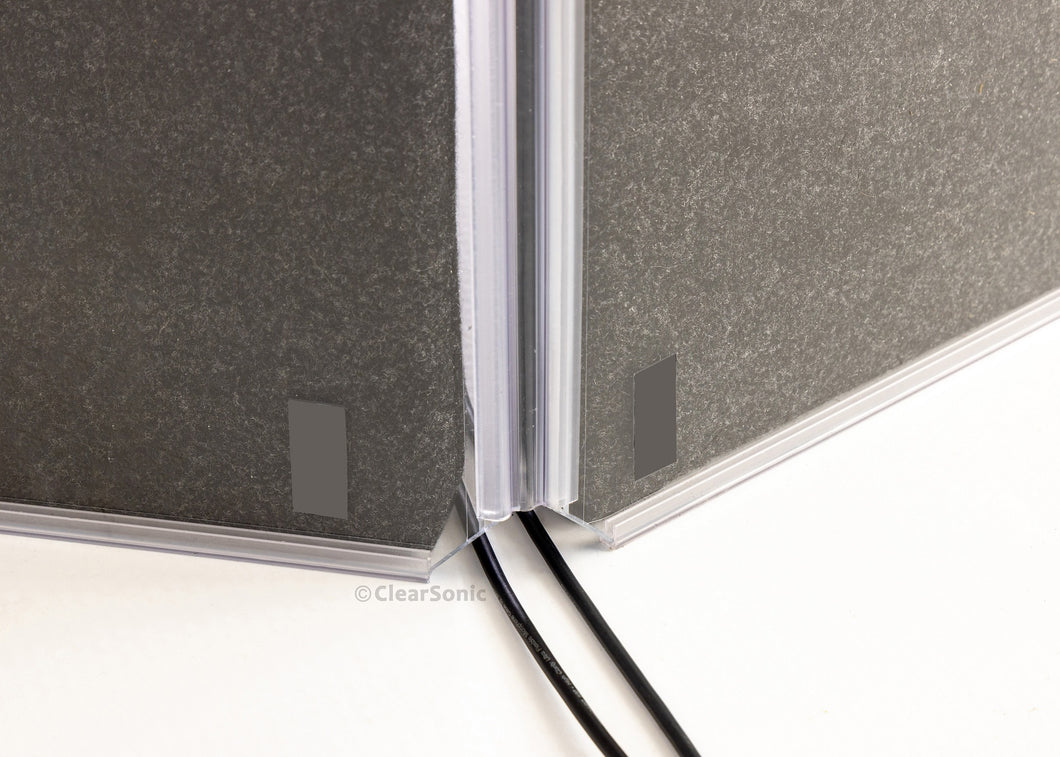

• Cable cut-outs – allows space where each panel meets at the bottom for routing/organizing cables for microphones or any wired gear.

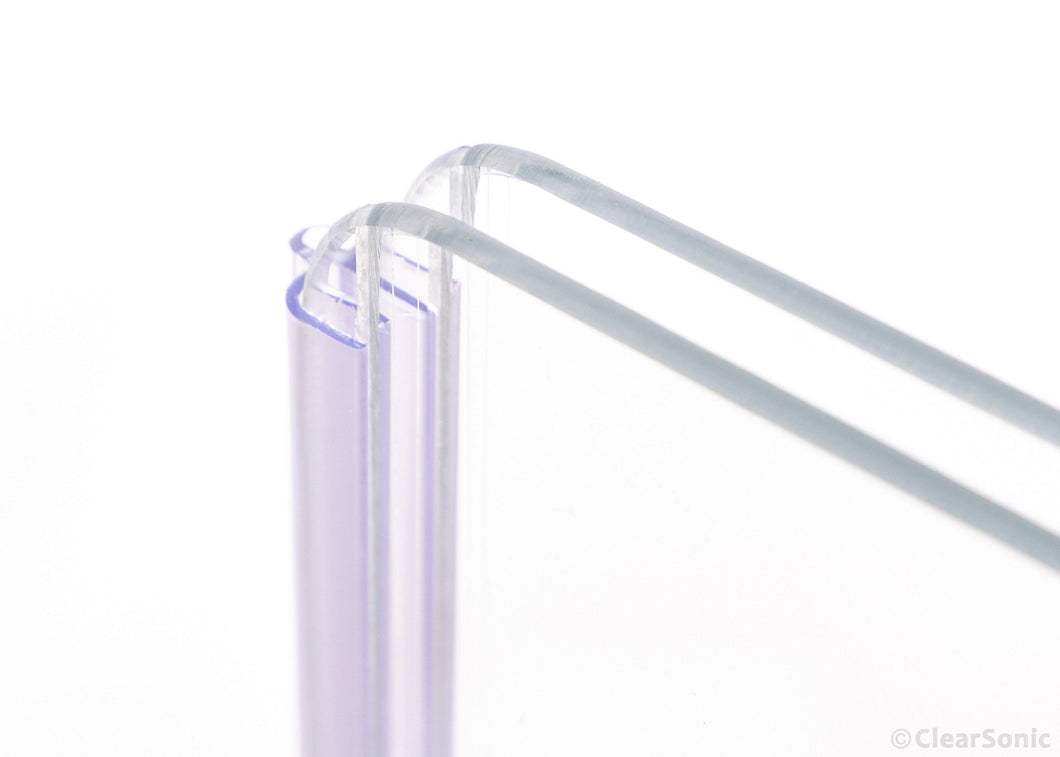

Hinge Features

• Full-length – our hinges run the full length of each acrylic panel. This extra coverage provides superior sound isolation compared to competitors whose hinges leave exposed seams between panels for sound to escape.

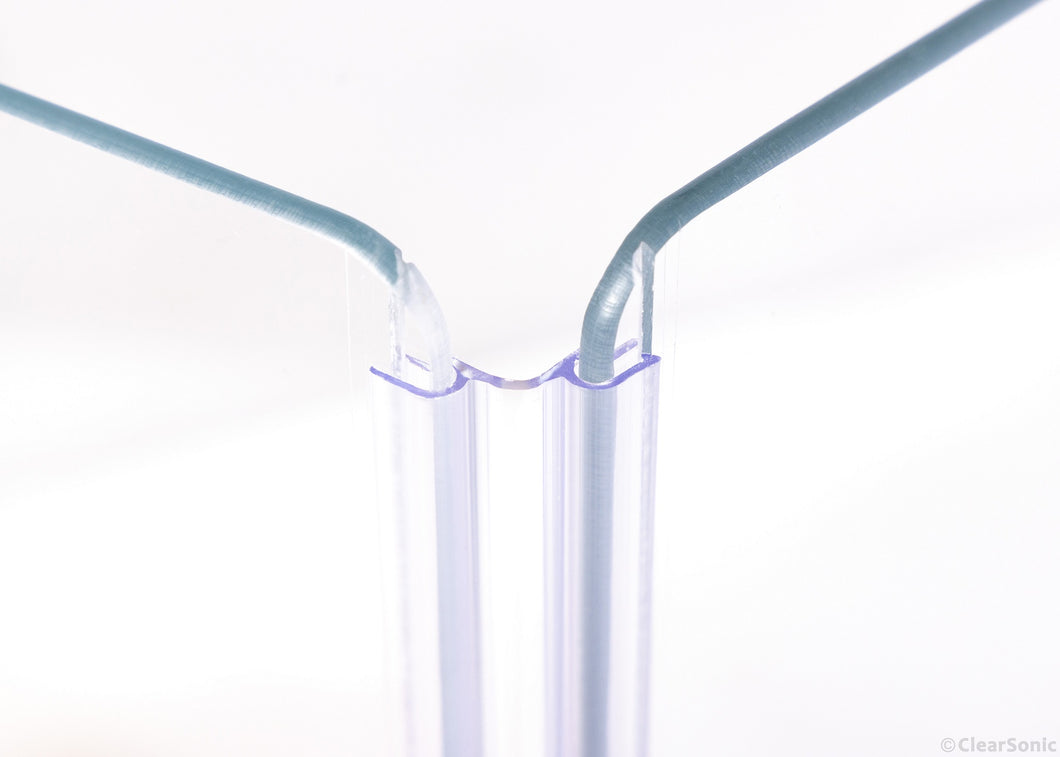

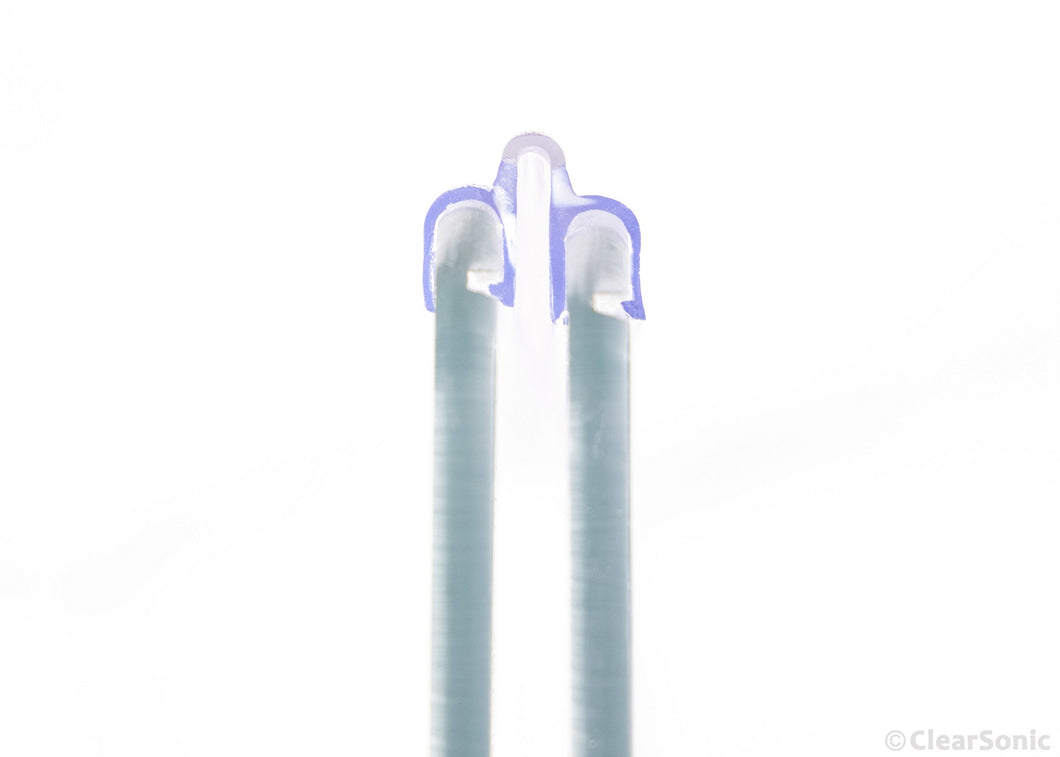

• Tooth in groove mechanical lock – the hinge tooth locks into the groove cut into each acrylic panel for superior connection and longer life, especially compared to Friction hinge.

• Low profile – allows for better aesthetics as hinge blends into the shield better.


• Flexibility – hinge bends 180 degrees in one direction and 90 degrees in the other allowing for accordion style folding. This makes it easier to ship, store, and transport, and allows for a more customized shield footprint.

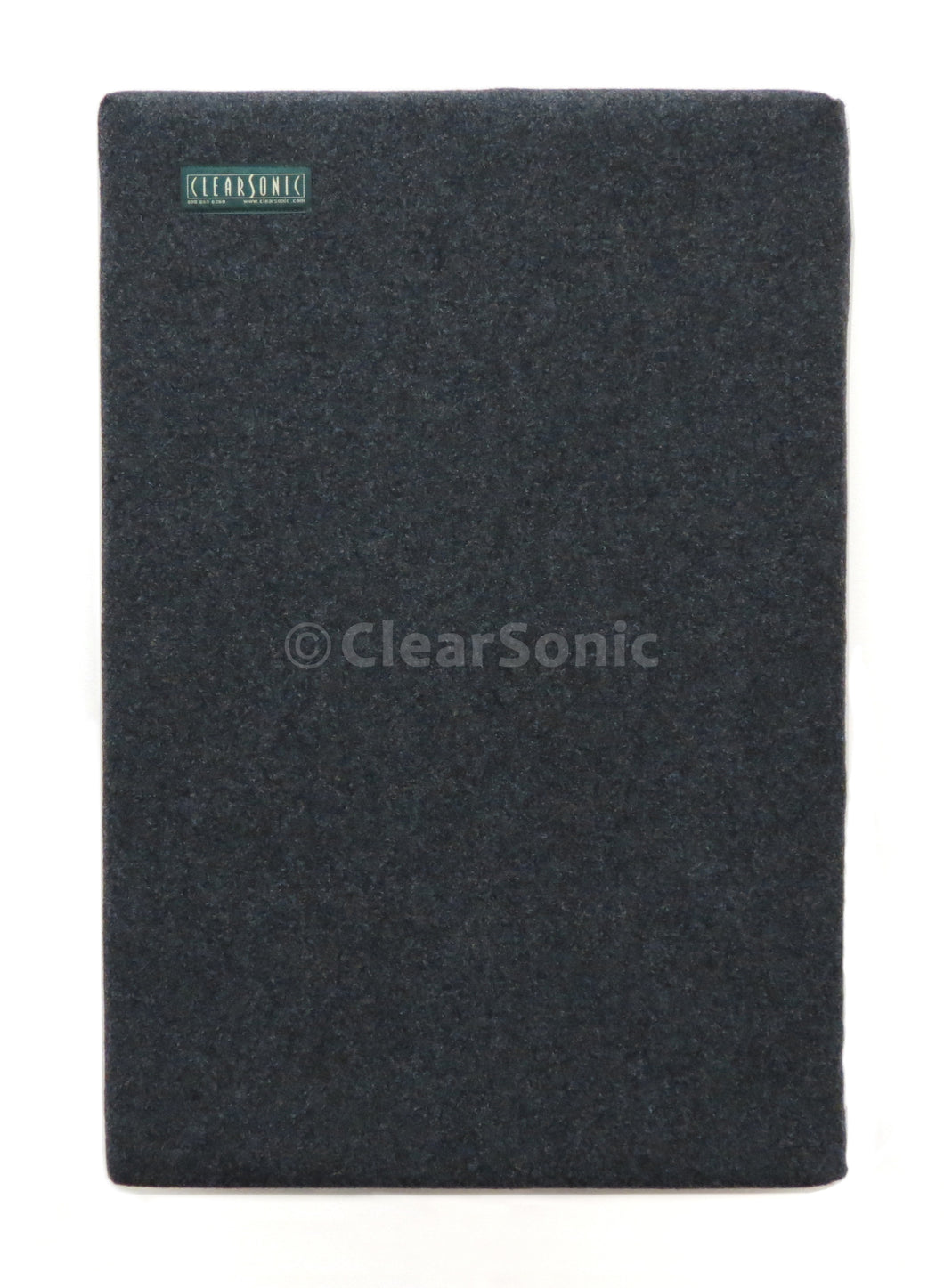

Sorber Features

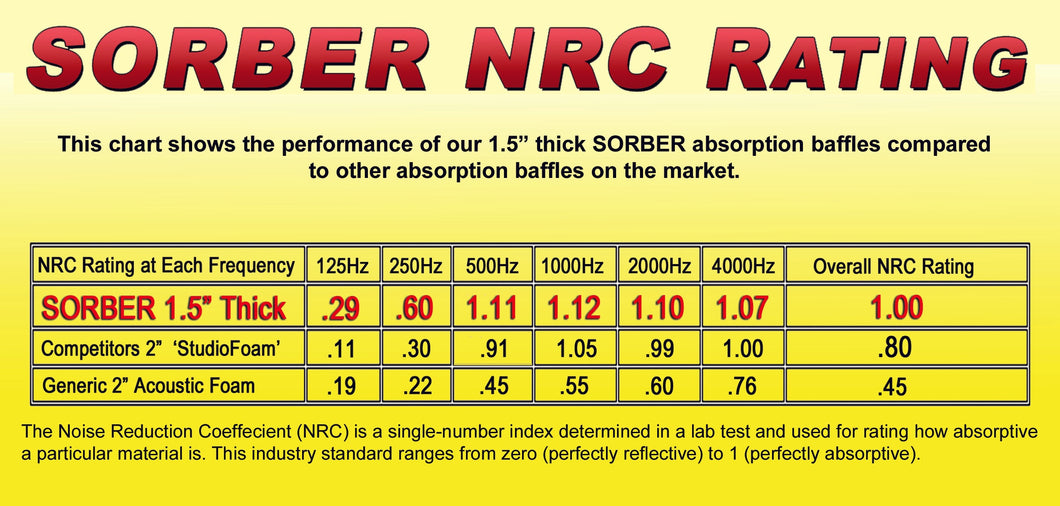

• 1.5” thick rigid fiberglass core - provides superior sound absorption compared to acoustic foam and other fiberglass baffles. Allows panels to free stand (S2466x2) or lay on top of an acrylic shield (LidPacs).

• Velcro-receptive acoustic fabric jacket – provides another layer of sound absorption and allows Sorber baffles to attach to acrylic material or other Sorber baffles with Velcro.

• Sewn seams – fabric jacket fully covers inner fiberglass. No glue is used and there is no exposed fiberglass.
