AP40 - Guitar AmpPac 40

ClearSonic AmpPac 40 Portable Guitar Amp Isolation Booth
Guitar Iso Booth Package with Acrylic Amp Shield and Sorber Sound Absorption Baffles
Dimensions: 45” W x 30” D x 48” H
Part Number: AP40

AmpPac 40 Features

• Designed to work with 4x10 or 4x12 speaker cabinets and combo amps
• Modular and expandable if more room is ever needed
• Great for studio, stage, and House of Worship
• Large enough footprint to fit microphone inside
• Cuts down on mic bleed and gives soundperson greater control over the mix
• The front A2448x3 acrylic amp shield and rear S2444x2 free-standing Sorber baffle offers great sound isolation and absorption
• 14 square feet of sound absorbing Sorber baffles provide volume reduction
• Cable cutouts allow for easy cable routing to your gear

Acrylic Amp Shield Features

• Routered edges – provide clean and smooth edge that won’t cut your hands.


• ¼” thick acrylic material – provides durability for transporting panels. Creates acoustic separation between instruments on stage or in the studio to cut down on mic bleeding and allows everyone to hear themselves and the mix better. Adds stability that allows for modular set up to support acrylic height extenders and Sorber baffles on top, such as a LidPac, and attachment of Sorber panels, such as the S2224, directly to the acrylic panels with adhesive-backed Velcro.


• Cable cut-outs – allows space where each panel meets at the bottom for routing/organizing cables for microphones or any wired gear. Also allows less sound to escape compared to mouse hole cutouts.

Hinge Features

• Full-length – our hinges run the full length of each acrylic panel. This extra coverage provides superior sound isolation compared to competitors whose hinges leave exposed seams between panels for sound to escape.


• Tooth in groove mechanical lock – the hinge tooth locks into the groove cut into each acrylic panel for superior connection and longer life, especially compared to Friction hinge.


• Low profile – allows for better aesthetics as hinge blends into the shield better.

• Flexibility – hinge bends 180 degrees in one direction and 90 degrees in the other allowing for accordion style folding. This makes it easier to ship, store, and transport, and allows for a more customized shield footprint.

Sorber Features

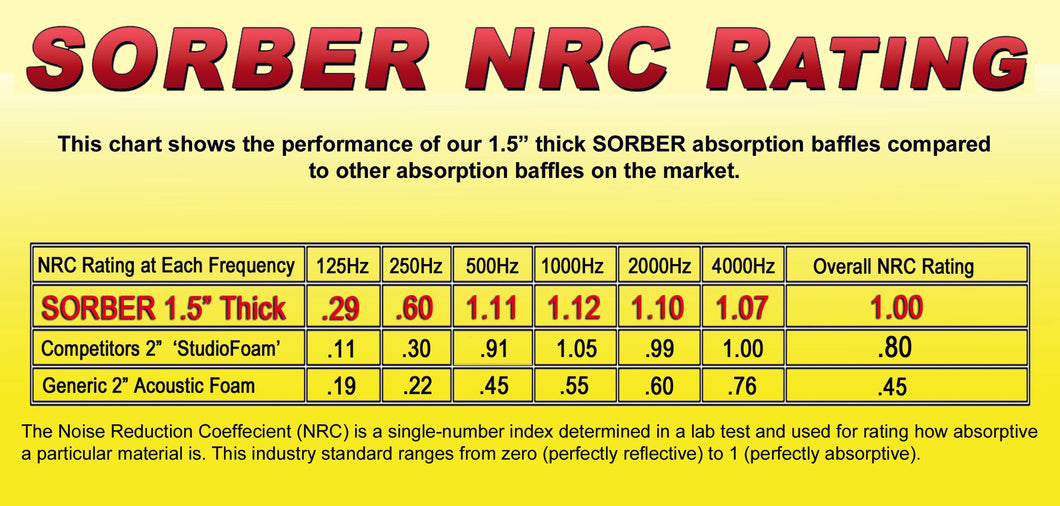

• Proprietary 1.6” thick rigid fiberglass core - provides superior sound absorption compared to acoustic foam and other fiberglass baffles. Allows panels to free stand (S2466x2) or lay on top of an acrylic shield (LidPacs).

• Velcro-receptive acoustic fabric jacket – provides another layer of sound absorption and allows Sorber baffles to attach to acrylic material or other Sorber baffles with Velcro.

• Sewn seams – fabric jacket fully covers inner fiberglass. No glue is used and there is no exposed fiberglass.

Variable footprint of about 45” W x 30” D x 48” H

Tired of sacrificing your cranked tube tone to keep the peace? Taming your tube amp doesn’t have to be a challenge. The AmpPac 40 will help keep you and your sound person, roommate, or significant other happy by allowing you to maintain your amp volume for proper tube breakup while keeping projected sound to more reasonable levels.

Our AmpPacs utilize our acrylic shields to reflect and isolate sound waves, allowing our Sorber sound absorption baffles to do what they do best – bring down the volume. This 45” W x 30” D x 48” H amp isolation booth features an A2448x3 acrylic amp shield in front with a free-standing S2444x2 Sorber sound absorption baffle in the rear to lower stage volume and create better separation between instruments for live performance and recording. The top of the booth is open to allow the amp to breathe – check out the AmpPac 41 if you need maximum isolation and volume reduction for your 4x10 or 4x12 rig.

All of our isolation booths are modular, portable, and feature full-length, flexible, yet robust plastic hinges that utilize our ‘tooth in groove’ mechanical lock to securely snap into place for a firm connection between panels, sound absorbing Sorber baffles, and the highest quality ¼” thick acrylic material to provide a booth that is functional, stable, and aesthetically pleasing.

Parts List:

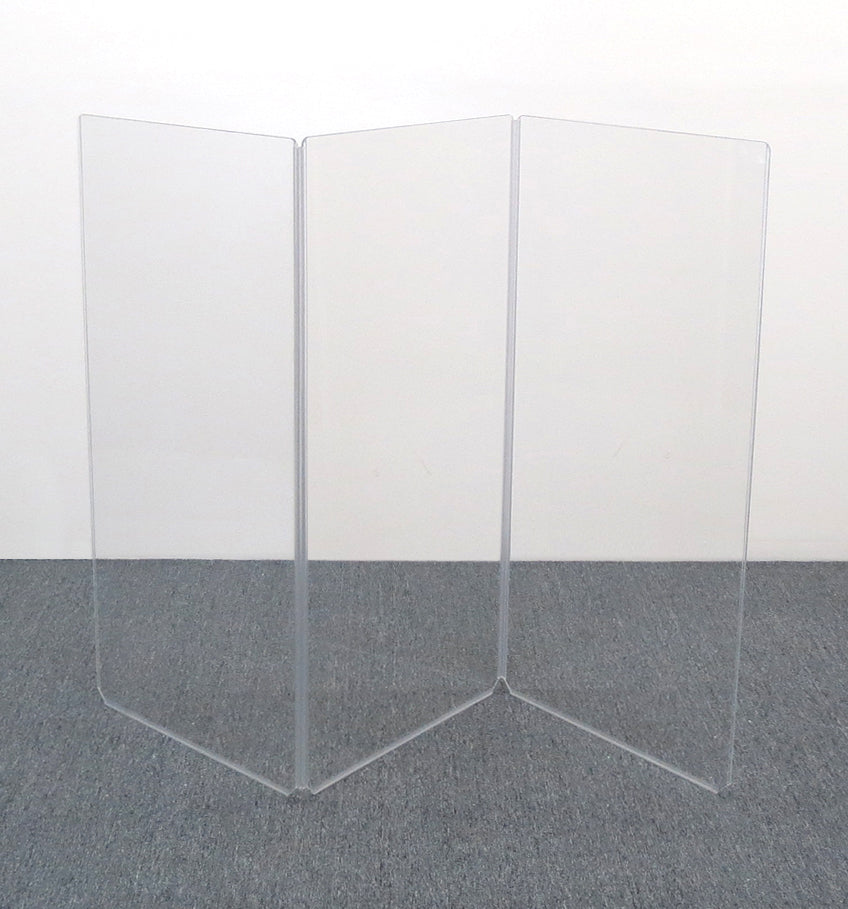

-A2438x3 – 3-panel amp shield, each panel measures 24” W x 48” H

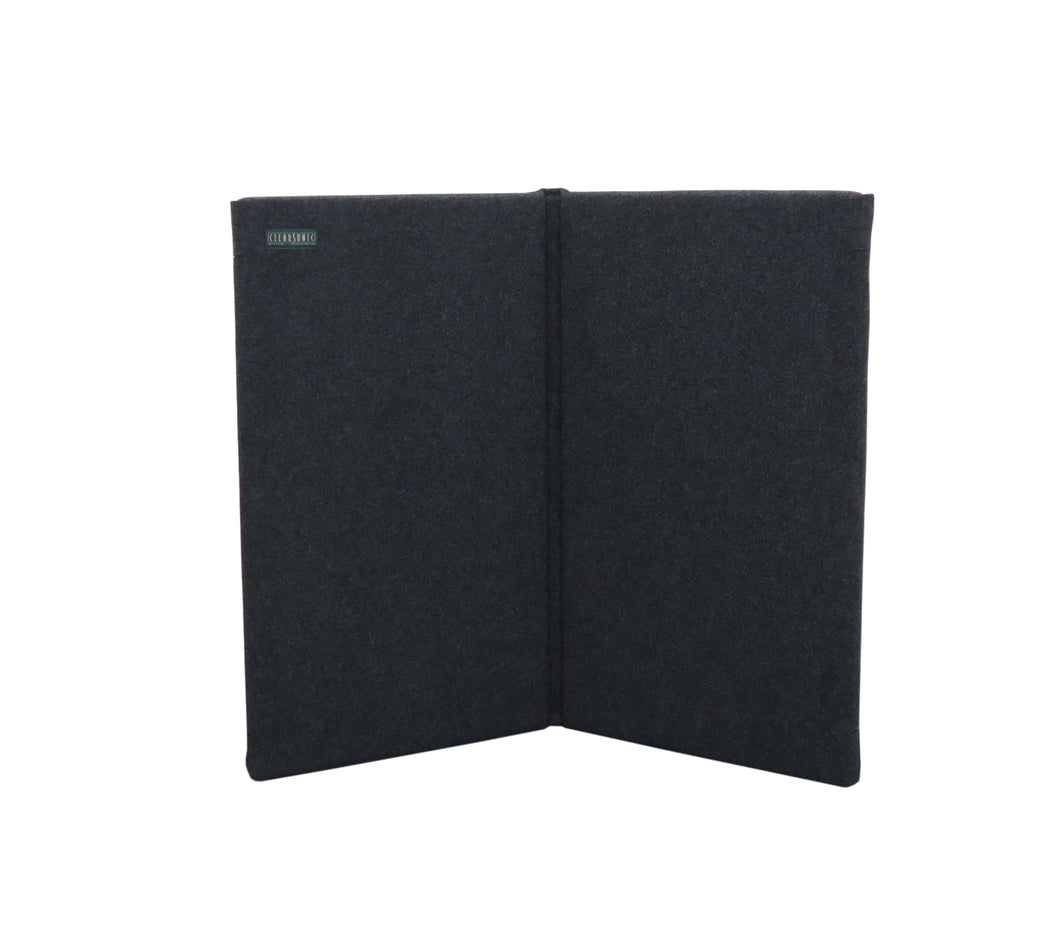

-S2444x2 – free-standing, 2-panel Sorber sound absorption baffle; each panel measures 24” W x 44” H
