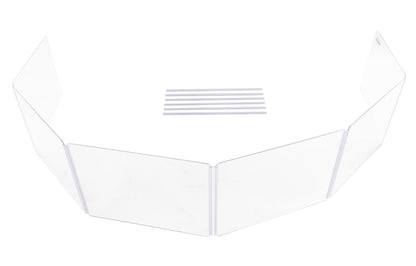

AX2418x6

144-inch wide x 18-inch high,  6-section Add-On Height Extenders with H-Channel

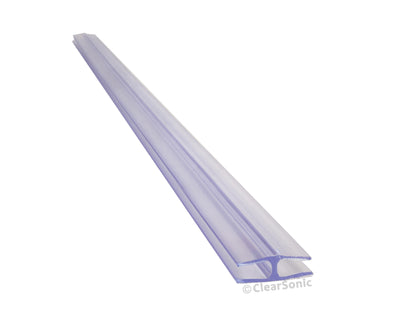

AX2418 Height Extenders add 18 inches of height to standard ClearSonic Acrylic Panel systems. ‘H’ channel and hinge are included. The AX2418x6 is normally used to increase the height of an A2466x6 or A2448x6. When it’s time to break down, ClearSonic Acrylic Panel systems with AX height extenders installed correctly will still fold ‘accordion style’ for easy storage.

Acrylic Features

• Routered edges – provide clean and smooth edge that won’t cut your hands.

• ¼” thick acrylic material – provides durability for transporting panels. Creates acoustic separation between instruments on stage or in the studio, cuts down on mic bleeding, and allows everyone to hear themselves or the mix better. Adds stability that allows for modular set up by supporting acrylic height extenders.


• Cable cut-outs – allows space where each panel meets at the bottom for routing/organizing cables for microphones or any wired gear.


Hinge Features

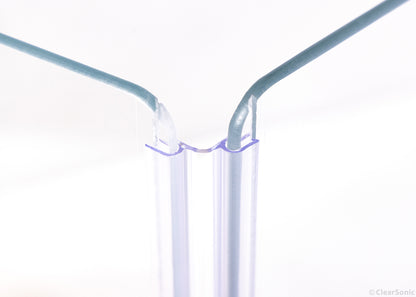

• Full-length – our hinges run the full length of each acrylic panel. This extra coverage provides superior sound isolation compared to competitors whose hinges leave exposed seams between panels for sound to escape.

• Tooth in groove mechanical lock – the hinge tooth locks into the groove cut into each acrylic panel for superior connection and longer life, especially compared to Friction hinge.

• Low profile – allows for better aesthetics as hinge blends into the shield better.

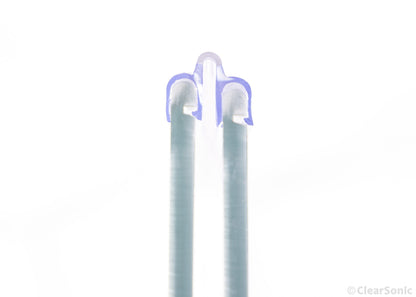

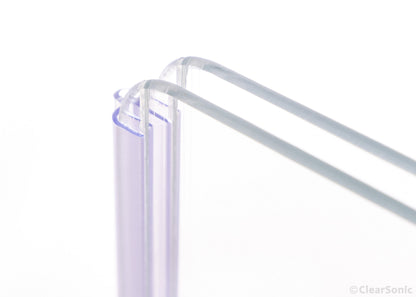

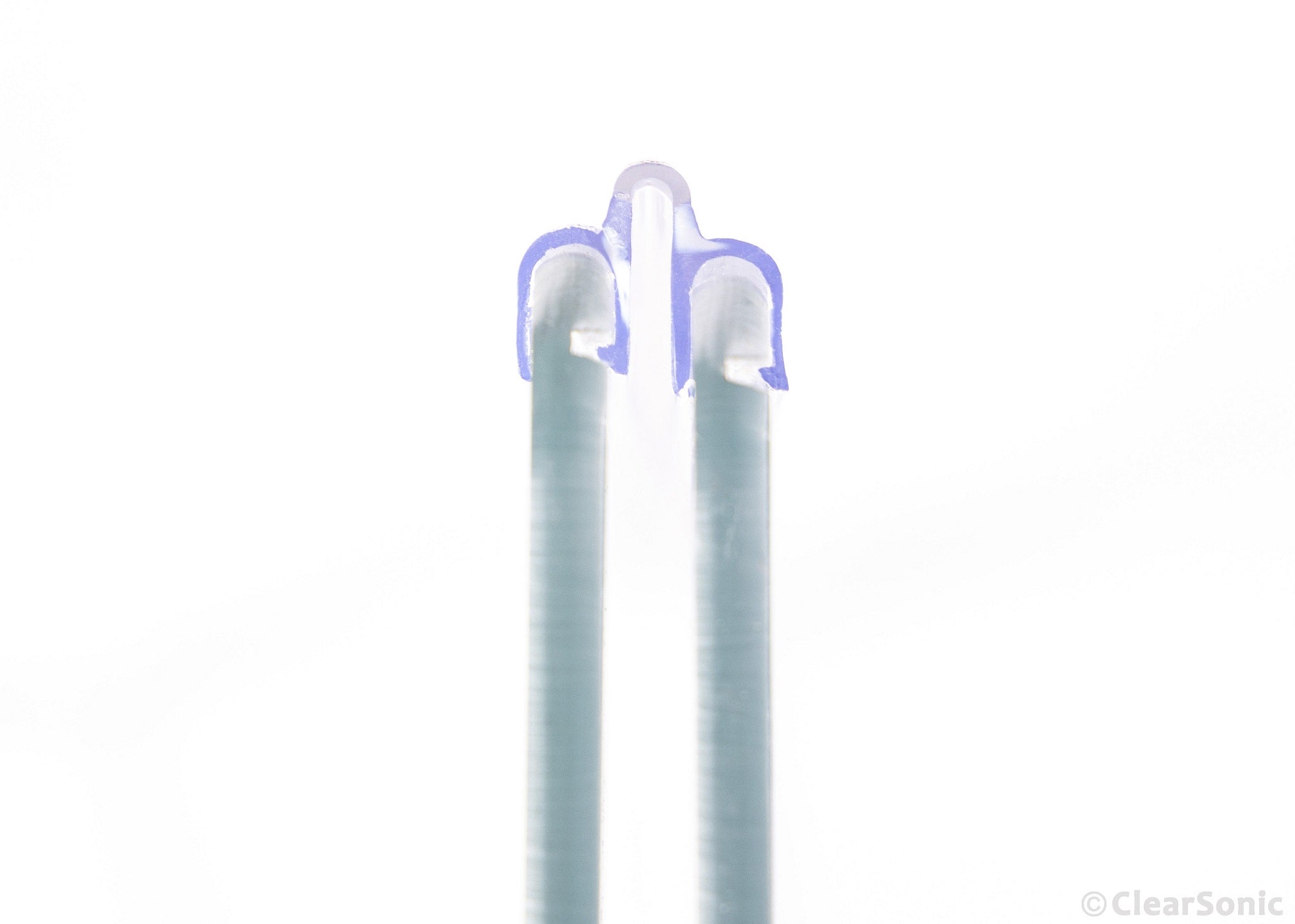

• Flexibility – hinge bends 180 degrees in one direction and 90 degrees in the other allowing for accordion style folding. This makes it easier to ship, store, and transport, and allows for a more customized shield footprint.
